Connections & Detailing

ProSteel is a steel detailing & fabrication software which can efficiently create accurate 3D models for structural steel, metal work, and steel assemblies.  You can then quickly generate design drawings, fabrication details, and schedules that automatically update whenever the 3D model changes.

Additionally, detailed output to CNC machines automates the steel fabrication process.

ProSteel fully supports your construction and planning tasks for structural steel and metal work in a 3D modeling environment.  Working with AutoCAD or MicroStation, you get an intuitive and integrated multi-material modeler perfectly suited to layout complex structures, produce shop drawings, assemble all your connections, and manage your bills of materials.

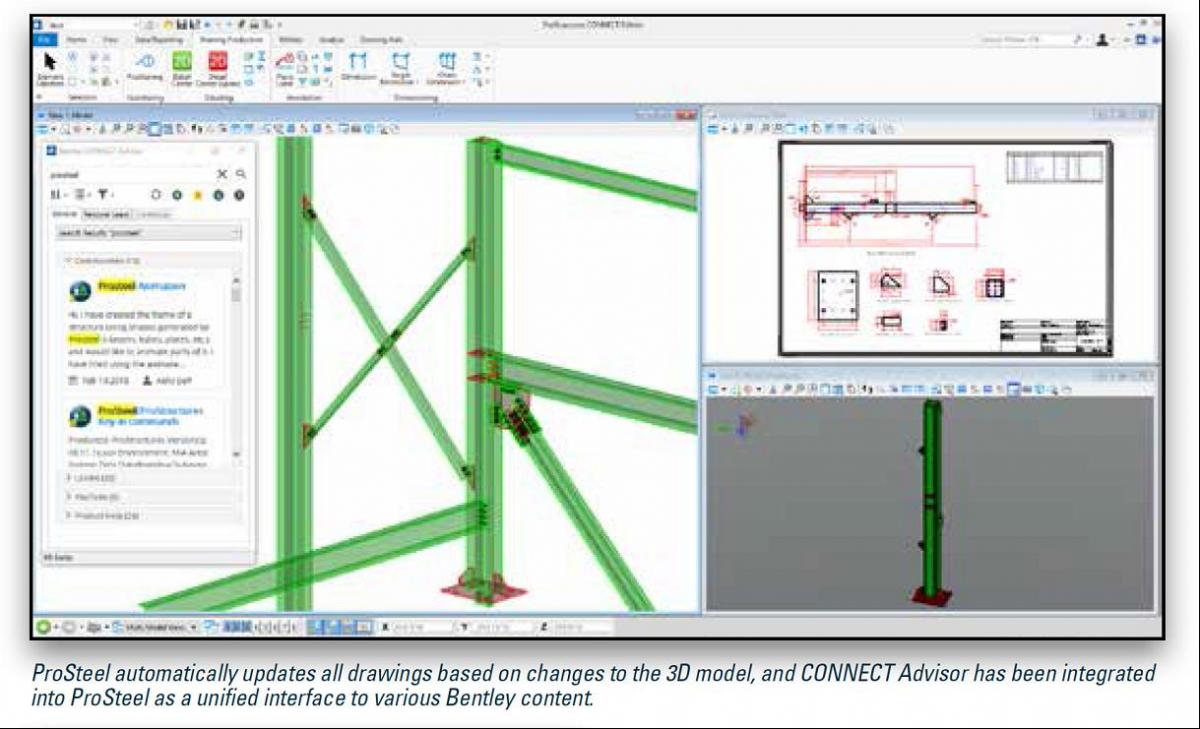

•    Quickly extract 2D drawings that automatically update when the 3D model changes
•    Efficiently create parametric assembly modeling for common objects such as steel stairs, handrails, and ladders
•    Easily exchange information with other disciplines thanks to interoperability with other Bentley and third-party applications
